Kicker Line Pig Launcher : Kicker Line (Pig Launcher _ Receiver) Sizing Criteria ... - Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher.

Kicker Line Pig Launcher : Kicker Line (Pig Launcher _ Receiver) Sizing Criteria ... - Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher.. Balancing line, menghubungkan launcher barrel dan major barrel, line nya cenderung kecil, umumnya 1″sampai 3″, fungsi utamanya untuk mengatur tekanan fluida agar terjadi keseimbangan saat barrel terisi dengan pig. Kicker line a kicker line is required to connect the major barrel with the bypass line to enable diversion of the fluid through the barrel to launch or receive balance line a balance line is provided on launchers to enable filling and pressurizing of the barrel on both sides of the pig at the same time. Do any one knows the reason for this. The launcher should have a kicker line located near the closure, allowing flow to be directed behind the pig for a successful launch. This is called the kicker line.

I concur with littleinch, i typically leave at least a 1.5 foot pup. Situation of temporary pig launcher below platformspecifics. The launcher should have a kicker line located near the closure, allowing flow to be directed behind the pig for a successful launch. The balance line, connecting the kicker line to the major or minor barrel of the pig launcher, helps lower the pressure differential across the pig so that the pig will not move when waiting to be launched, damaging the downstream inline valve or moving backwards which would interrupt the seal. Kicker line a kicker line is required to connect the major barrel with the bypass line to enable diversion of the fluid through the barrel to spec has a variety of pig trap systems on offer ranging from simple, standalone launcher and receiver all the way to fully automated skid mounted packages.

Pig launcher & receiver with quick opening closure, View ... from sc02.alicdn.com

It generally tees off from the branch line from the main tee i described above, and connects to the launcher or receiver barrel. • sistema completos de pig launchers y receivers diseñados según asme b31.3, b31.4, b31.8. After the pig leaves the launcher the mainline valve is fully opened and the isolation valve and kicker valve are closed. Pigging systems are designed so that the pig is loaded into the launcher, which is pressured to launch the pig into the pipeline through a kicker line. Pig launcher dilengkapi dengan berbagai aksesori. Do any one knows the reason for this. Pig launcher and receiver specification kicker line orientation viewed from end closure end. The launcher should have a kicker line located near the closure, allowing flow to be directed behind the pig for a successful launch.

We have track of mfg and supply of 48 pig launcher and receiver to tdw india ltd for cairn energy site in state of rajasthan.

However, i understood that there exists a confusion regarding the to ensure this, the balance line, branching off from the kicker line, shall be connected to the minor barrel as close as possible to the pig trap valve. Normally the kicker line nozzle on pig reciver will be positioned 0'clock position & for pig launcher it will be on 6' clock position.ie from down. They also include a gd closure built to asme section viii specifications. For launcher the kicker line is connected to the upstream part as close as possible to the qoc and for receiver as close as possible to the reducer. A cost effective, flexible and temporary means of pigging pipelines, particularly during pipeline construction. Pigging facilities and considerations should be incorporated into the pipeline system design. • sistema completos de pig launchers y receivers diseñados según asme b31.3, b31.4, b31.8. Inpipe designed the temporary launcher. Pigging valve, terletak antara pig trap dengan jalur pipa utama. Partially close the main line valve. I concur with littleinch, i typically leave at least a 1.5 foot pup. After the pig leaves the launcher the mainline valve is fully opened and the isolation valve and kicker valve are closed. Adaptable launcher assembly can include.

Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher. The pig must fit loosely in the launcher/receiver so the barrel of the launcher/receiver must have a greater diameter than the pipe itself. I've come to the conclusion after decades of doing this that it really doesn't re: Vent and drain connection and. Do any one knows the reason for this.

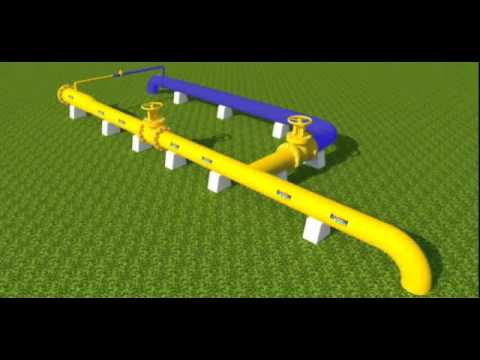

Pig Launchers / Pig Receivers - Arrangement - Texvyn ... from img.youtube.com

They also include a gd closure built to asme section viii specifications. Case studyptpl developed for pigging a new line in the norwegian north sea. Without the need for line flushing, pigging offers the additional advantage of a much more rapid and reliable product. A horizontal pig receiver would be almost identical to this schematic, except for the position and size of certain nozzles such as drain, kicker line and psv nozzle. Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher. For launcher the kicker line is connected to the upstream part as close as possible to the qoc and for receiver as close as possible to the reducer. Pig launchers and pig receivers have been discussed many times on cheresources. Suitable for line pressures up to 25 bar.

Inpipe designed the temporary launcher.

Do any one knows the reason for this. Katub yang digunakan untuk mengatur arah aliran ada 3 buah, yaitu : Pig launcher and receiver specification kicker line orientation viewed from end closure end. Kicker line, berfungsi sebagai pendorong pig selama proses pigging. Pigging systems are designed so that the pig is loaded into the launcher, which is pressured to launch the pig into the pipeline through a kicker line. Tahap 3 buka kicker line untuk mendorong pig. Receiver there is no requirement for extensive line flushing. The launcher should have a kicker line located near the closure, allowing flow to be directed behind the pig for a successful launch. Littleinch(petroleum) 28 feb 19 16:04. Pig launcher and receiver systems are normally installed in a horizontal 11: The pig launcher launches the pig into pipeline and the upstream pressure pushes the pig to other end of the pipeline where it is received by the pig launcher. After the pig leaves the launcher the mainline valve is fully opened and the isolation valve and kicker valve are closed. Situation of temporary pig launcher below platformspecifics.

Katub yang digunakan untuk mengatur arah aliran ada 3 buah, yaitu : They also include a gd closure built to asme section viii specifications. Kicker line a kicker line is required to connect the major barrel with the bypass line to enable diversion of the fluid through the barrel to launch or receive balance line a balance line is provided on launchers to enable filling and pressurizing of the barrel on both sides of the pig at the same time. Hence generally arrangement for pig launchers and receivers are essentially the same, except for the difference between 'kicker line'. Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher.

Receiving Procedures | Western Filter Co. from www.westernfilterco.com

Tahap 2 masukkan pig ke dalam launcher. Littleinch(petroleum) 28 feb 19 16:04. A horizontal pig receiver would be almost identical to this schematic, except for the position and size of certain nozzles such as drain, kicker line and psv nozzle. The launcher should have a kicker line located near the closure, allowing flow to be directed behind the pig for a successful launch. Inpipe designed the temporary launcher. This is called the kicker line. Kicker line, berfungsi sebagai pendorong pig selama proses pigging. Where is the kicker line on a pig launcher?

The portable temporary pig launcher/receiver is the result of innovative work by inpipe's highly skilled design team in response to a client problem.

Kicker line a kicker line is required to connect the major barrel with the bypass line to enable diversion of the fluid through the barrel to spec has a variety of pig trap systems on offer ranging from simple, standalone launcher and receiver all the way to fully automated skid mounted packages. After the pig leaves the launcher the mainline valve is fully opened and the isolation valve and kicker valve are closed. The launchers and receivers are designed with a 6 line and 8 barrel at 60 long with a 4 kicker, ¾ in. Balancing line, menghubungkan launcher barrel dan major barrel, line nya cenderung kecil, umumnya 1″sampai 3″, fungsi utamanya untuk mengatur tekanan fluida agar terjadi keseimbangan saat barrel terisi dengan pig. It generally tees off from the branch line from the main tee i described above, and connects to the launcher or receiver barrel. A kicker line, a minimum of 25% capacity of the main line, is tied from the main pipeline to the barrel, approximately 1 1/2 to 2 pig lengths upstream of the transition reducer, to. Pig launcher / pig launcher. Kicker line, berfungsi sebagai pendorong pig selama proses pigging. We have track of mfg and supply of 48 pig launcher and receiver to tdw india ltd for cairn energy site in state of rajasthan. Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher. The portable temporary pig launcher/receiver is the result of innovative work by inpipe's highly skilled design team in response to a client problem. A horizontal pig receiver would be almost identical to this schematic, except for the position and size of certain nozzles such as drain, kicker line and psv nozzle. • sistema completos de pig launchers y receivers diseñados según asme b31.3, b31.4, b31.8.

Source: philspumpingandfab.com

• sistema completos de pig launchers y receivers diseñados según asme b31.3, b31.4, b31.8. Inpipe designed the temporary launcher. Without the need for line flushing, pigging offers the additional advantage of much more rapid and reliable product changeover. Tahap 2 masukkan pig ke dalam launcher. Pipeline pig launcher and receiver.

Source: iansutton.com

Katub yang digunakan untuk mengatur arah aliran ada 3 buah, yaitu : Kicker line, berfungsi sebagai pendorong pig selama proses pigging. Pmaginot(chemical) 1 mar 19 12:38. Pipeline pig launcher and receiver. A kicker line, a minimum of 25% capacity of the main line, is tied from the main pipeline to the barrel, approximately 1 1/2 to 2 pig lengths upstream of the transition reducer, to.

Source: res.cloudinary.com

Pigging systems are designed so that the pig is loaded into the launcher, which is pressured to launch the pig into the pipeline through a kicker line. Pigging valve, terletak antara pig trap dengan jalur pipa utama. A kicker line, a minimum of 25% capacity of the main line, is tied from the main pipeline to the barrel, approximately 1 1/2 to 2 pig lengths upstream of the transition reducer, to. Where is the kicker line on a pig launcher? Pmaginot(chemical) 1 mar 19 12:38.

Source: 1.bp.blogspot.com

A cost effective, flexible and temporary means of pigging pipelines, particularly during pipeline construction. After that, open main line trap valve, then open kicker line trap valve fully, along with it close main line bypass valve partially. This will increase the flow through the kicker valve and behind the pig. Pig launcher and receiver specification kicker line orientation viewed from end closure end. For a receiver, time involved much longer than that of.

Source: imgv2-1-f.scribdassets.com

Pigging facilities and considerations should be incorporated into the pipeline system design. Pig launcher / pig launcher. Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher. They also include a gd closure built to asme section viii specifications. The launchers and receivers are designed with a 6 line and 8 barrel at 60 long with a 4 kicker, ¾ in.

Source: www.netherlocks.com

Pmaginot(chemical) 1 mar 19 12:38. This will increase the flow through the kicker valve and behind the pig. After that, open main line trap valve, then open kicker line trap valve fully, along with it close main line bypass valve partially. Without the need for line flushing, pigging offers the additional advantage of a much more rapid and reliable product. Kicker line, berfungsi sebagai pendorong pig selama proses pigging.

Source: static.whatispiping.com

Pig launchers and pig receivers have been discussed many times on cheresources. The pig must fit loosely in the launcher/receiver so the barrel of the launcher/receiver must have a greater diameter than the pipe itself. Kicker line a kicker line is required to connect the major barrel with the bypass line to enable diversion of the fluid through the barrel to launch or receive balance line a balance line is provided on launchers to enable filling and pressurizing of the barrel on both sides of the pig at the same time. The launchers and receivers are designed with a 6 line and 8 barrel at 60 long with a 4 kicker, ¾ in. Pig launchers are essentially vessels used for launching of a pipe pig or a pig tool into the pipeline for cleaning or inspection purpose.

Source: 2.bp.blogspot.com

Both launchers and receivers should have a vertical vent line above head height located near the closure and a pressure gauge connection near the closure allowing the. Pig launcher and receiver systems are normally installed in a horizontal 11: The pig must fit loosely in the launcher/receiver so the barrel of the launcher/receiver must have a greater diameter than the pipe itself. Balancing line, menghubungkan launcher barrel dan major barrel, line nya cenderung kecil, umumnya 1″sampai 3″, fungsi utamanya untuk mengatur tekanan fluida agar terjadi keseimbangan saat barrel terisi dengan pig. Adaptable launcher assembly can include.

Source: www.specoilandgas.com

For a receiver, time involved much longer than that of. Without the need for line flushing, pigging offers the additional advantage of a much more rapid and reliable product. Without the need for line flushing, pigging offers the additional advantage of much more rapid and reliable product changeover. Kicker line size is not critical because it is going to be used for short period of time for filling the pig trap and moving the pig for couple of meters under saeid, you're definitely right by the explanation of the kicker line that installed on a pig launcher. Hence generally arrangement for pig launchers and receivers are essentially the same, except for the difference between 'kicker line'.
